Copper Smelter Plant

Overview

PT. Merdeka Copper Gold Tbk. is a holding company that operates in mining industry. The project was commissioned by PT. Merdeka Copper Gold Tbk. requesting to provide FRP Tanks that can withstand harsh sulfuric acid environment during the smelting of ore. The smelter was located at Wetar Island, East Indonesia where the "Batu Tua Tembaga Raya" mine yields LME Grade A Copper cathode, known for its high purity. This project is also supported by AOC Resins, a leading global supplier of specialty formulations and solutions .

Solutions

FRP Tank: HCl Tank

Specifications:

Unit: 3
Diamter: 5 m
Height: 5 m

FRP Tank: Electrolyte Circulation Tank

Specifications:

Unit: 4
Diameter: 12 m
Height: 2.92 m

FRP Tank: Filter Backwash Surge Tank

Specifications:

Unit: 4
Diameter: 5.5 m
Height: 2.6 m

FRP Tank: Settler Basin

Specifications:

Unit: 4
Size: 18.5 m x 12.5 m x 1 m (L x W x H)

FRP Tank: Primary Mix Tank

Specifications:

Unit: 4
Diameter: 3 m
Height: 2.8 m

Services

Design and engineering of FRP tanks based on ASME-RTP1 and ASME D-3299 standards
Manufacturing of FRP tanks using filament winding system
On-site installation and supervision of the tanks

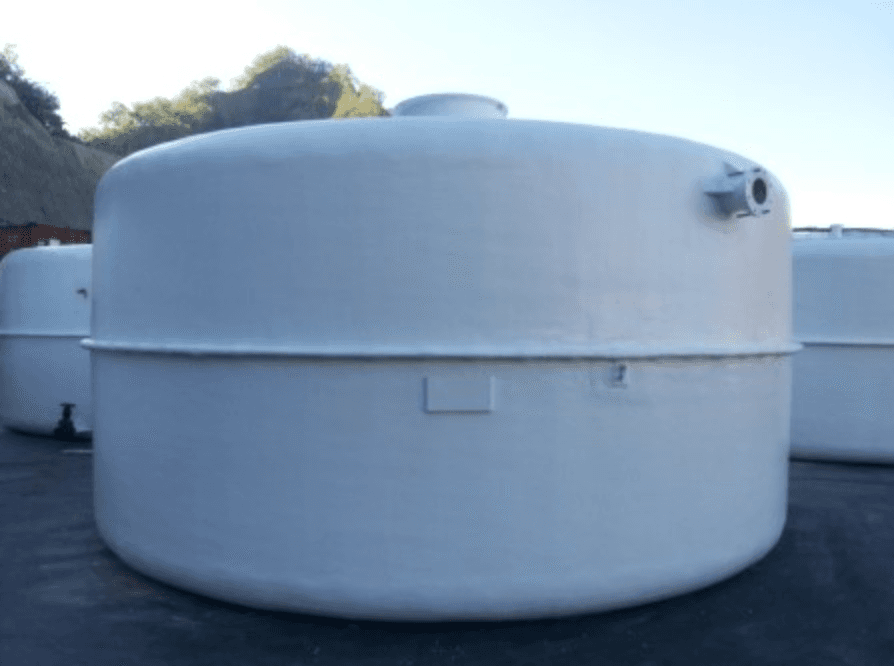

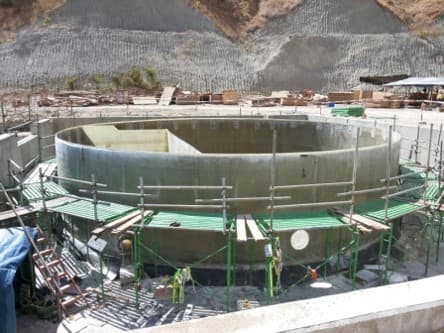

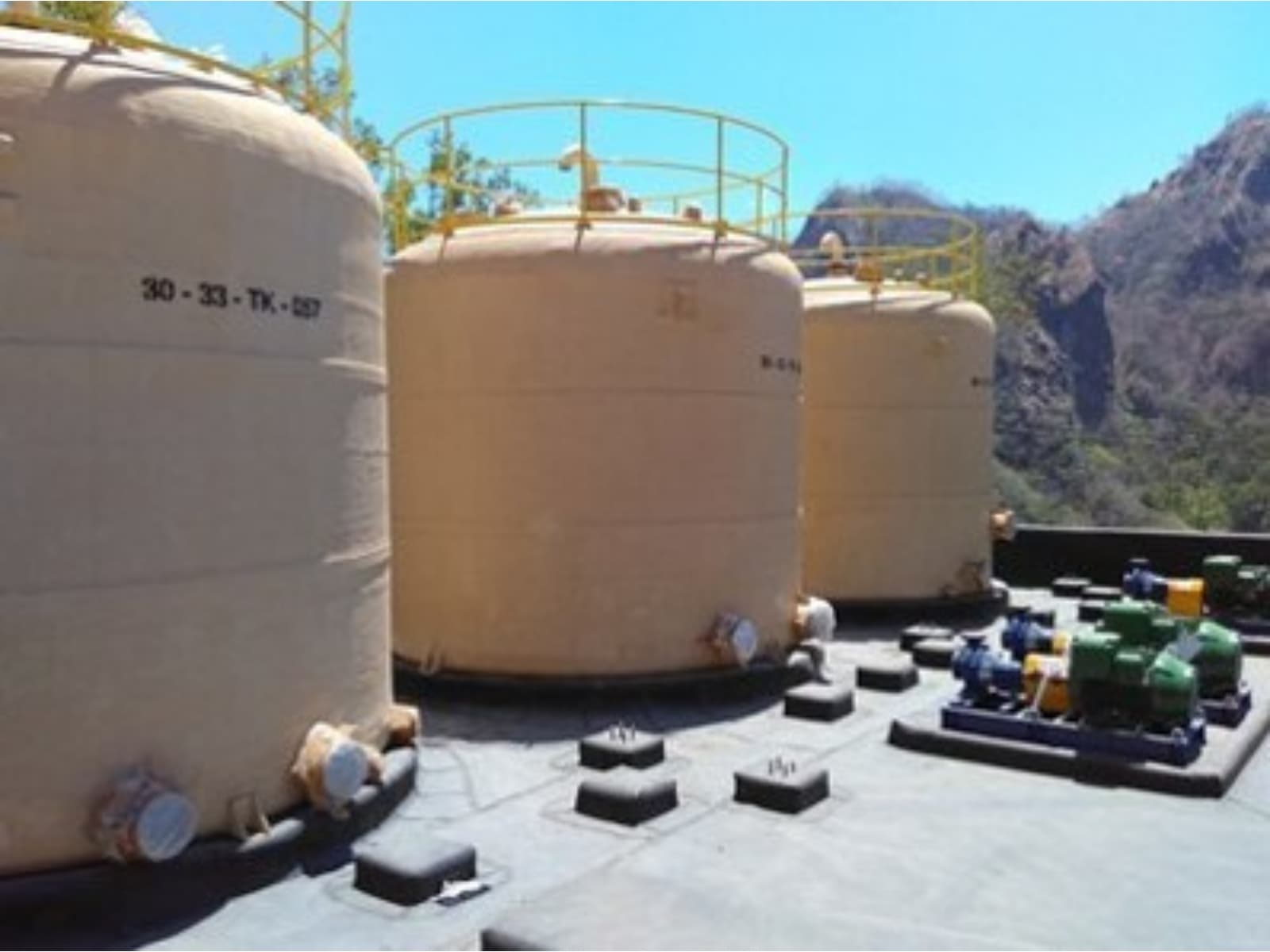

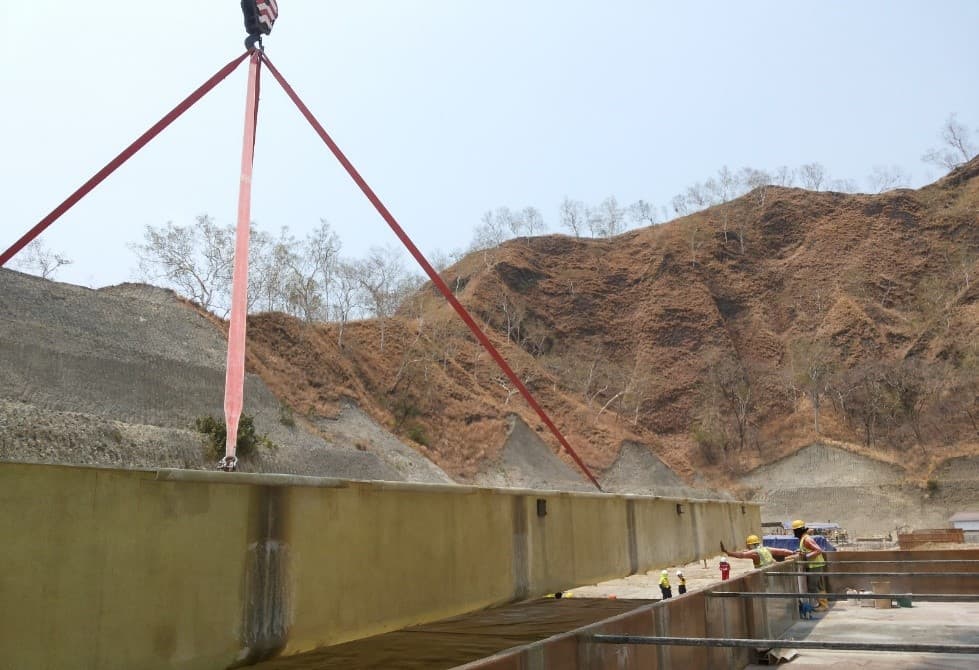

Gallery
