Matindok Gas Plant

Overview

PT. Pertamina commissioned this project to us for a gas development plant. The first production of the project was in the early of 2016. We were responsible for the construction of FRP tanks for various needs. The project location was located in remote island, and therefore, efficient project management was crucial to ensure the project was completed on time.

Solutions

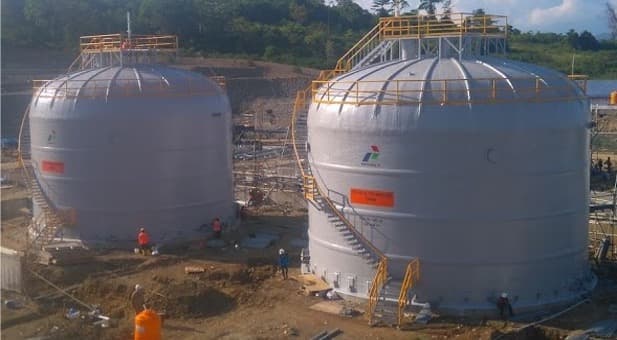

FRP Tank: Potable Water Tank

Specifications:

Volume: ~ 1200 m³
Diameter: 14 m, Height: 4 m

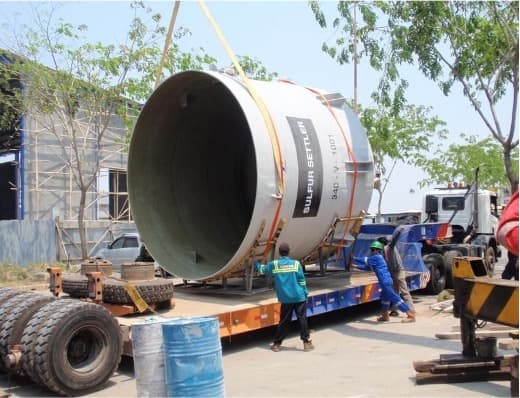

FRP Tank: Sulfur Settler Tank

Specifications:

Volume: ~ 228 m ³
Diameter: 3.6 m, Height: 5.6 m

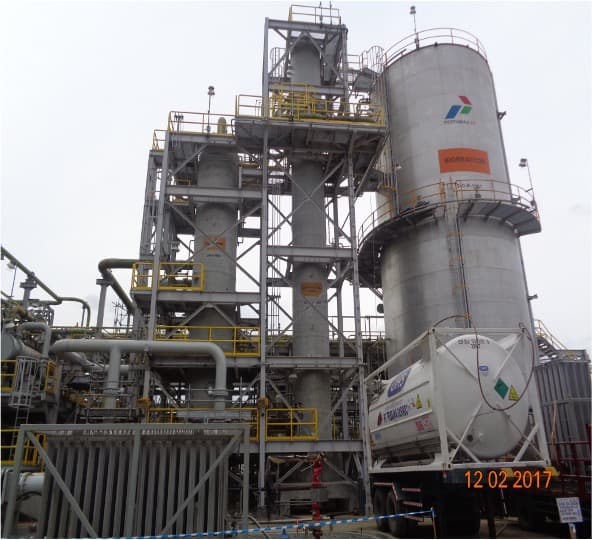

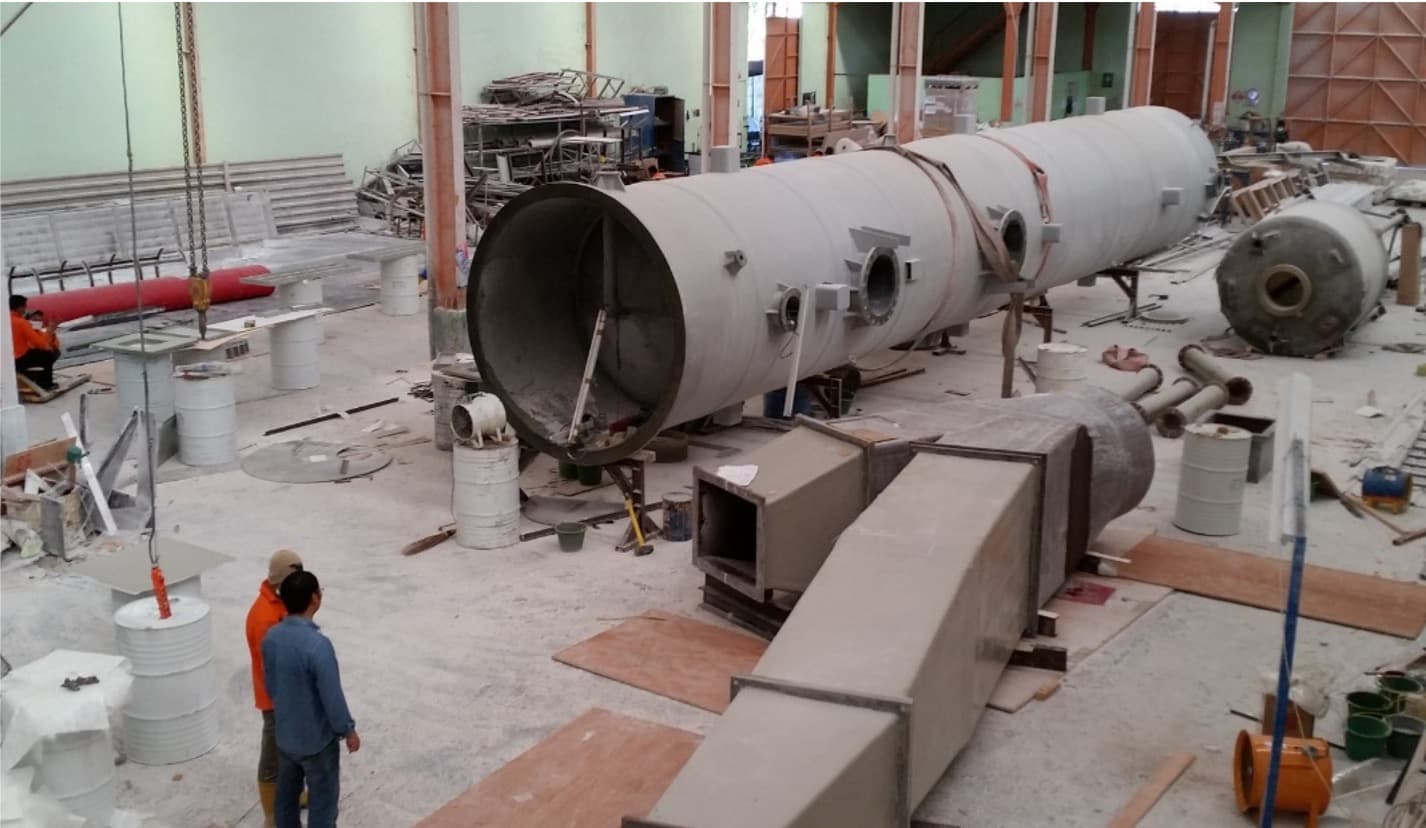

Air Stripper Column

Specifications:

Volume: ~ 304 m ³
Diameter: 2.2 m, Height: 20 m

Services

Design and engineering of FRP tanks and air stripper column based on ASME-RTP1 and ASME D-3299 standards
Manufacturing of FRP tanks and air stripper column using filament winding system
On-site installation and supervision of the tanks and column

Gallery
