Custom: Fan Stack & Water Basin

Overview

With a custom order from the Nippon Molymer Co. Ltd., we were tasked to manufacture Fan Stack and help to pre-assembly each segment of the product. Our production is based on ASTM C582 and has passed the Japan Quality Standard.

Solutions

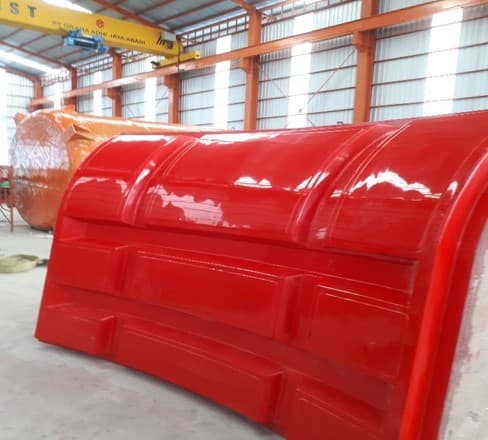

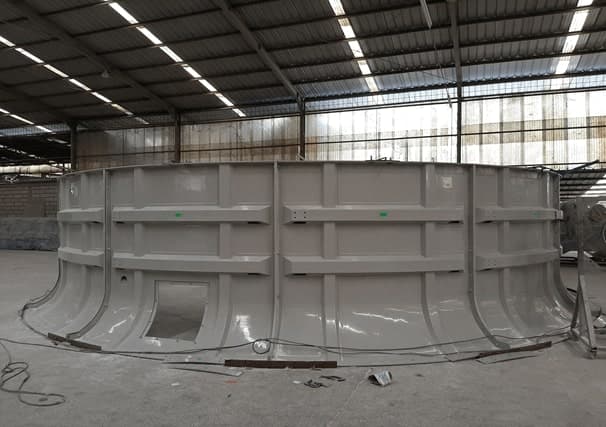

Custom Fan Stack

Specifications:

Diameter (range): 2,240 - 8,000 mm
Height (range): 1,800 - 2,000 mm

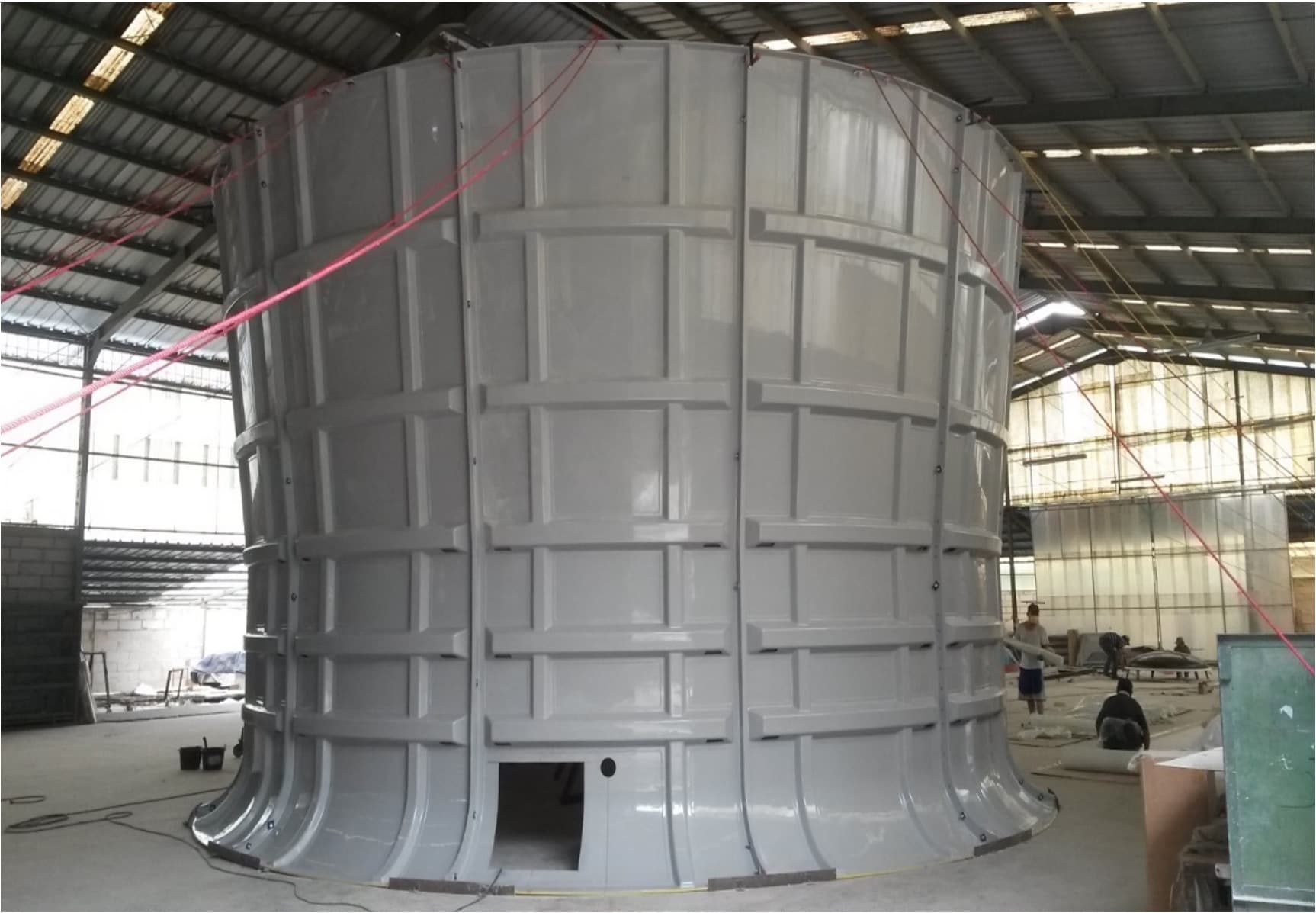

Custom Fan Stack Dufuser Type

Specifications:

Diameter (range): 4,500 - 3,735 mm
Height (range): 8,000 - 5,200 mm

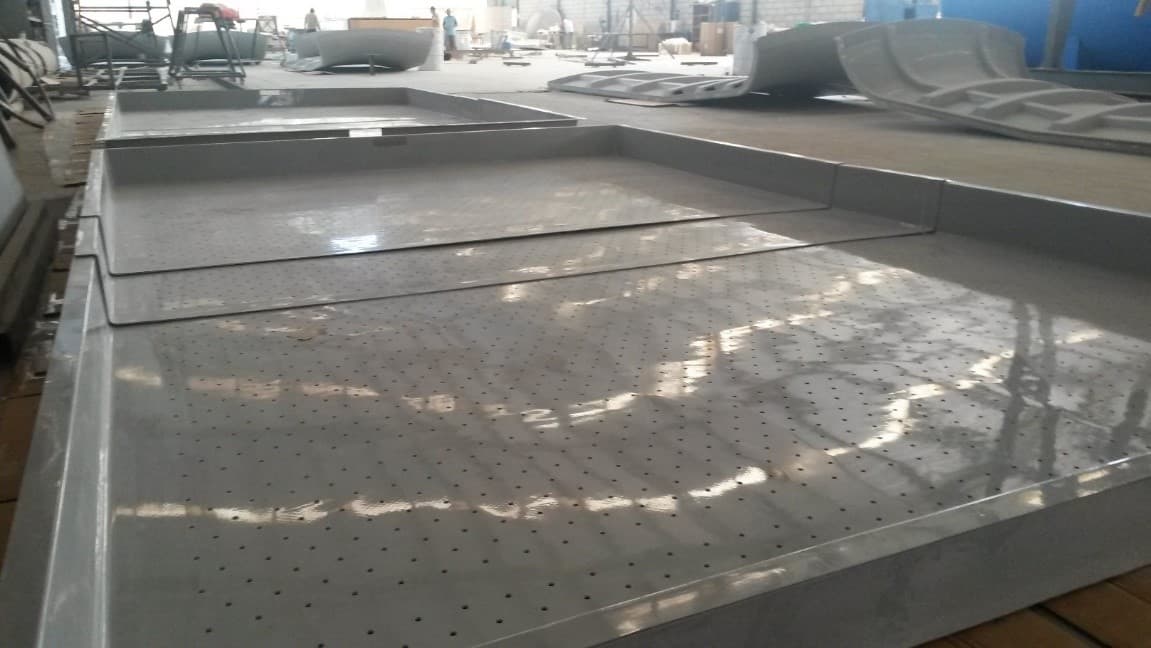

Custom Water Basin

Specifications:

Dimension (range): W1660 - W2600

Custom Elbow Duct

Specifications:

Diameter (range): 2,500 - 5,600

Services

Design and Engineering of the Fan Stack based on ASTM C-582 and Japan Quality Standard
Manufacturing of Fan Stack using discontinuous filament winding system at the Jakarta's factory before being transported to the site
Pre-assembly of each segment of the product at the Jakarta's factory before being transported to the site

Gallery
